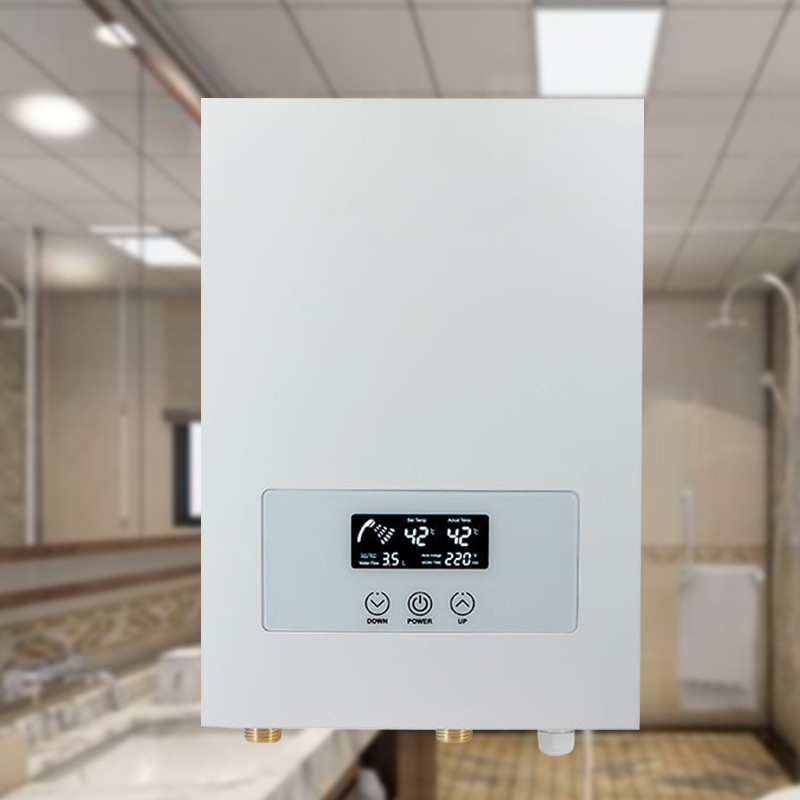

Electric heating boiler for DHW and floor heating CjG20b
Product Details:

PRICE:$200.0-$283.5/Piece
Negotiable price:According to different size and quantity

Certificate:ROHS/CE/ISO/CCC

After-sale guarantee: One year full warranty

MOQ: 100PCS/Color

Email : info@syheatpump.com

Tel:+86-0757-85496583
Wechat:+86-18367537710
Whatsapp:+86-18367537710

Chat Now
Details
Parameters
Download
Performance Features:

      Available for both radiator or underflow heating

      Touch screen control

      Timing and temperature adjusting

      Infrared remote control

      Low noise internal circulation pump

      WIFE optional

      Built in expansion tank

      8kw-20kw power optional,40-200heating area

Protection:

Anti-dry Protection

Automatically cut off the power supply under over temperature.

Prevent Freezing

Prevent the water pipe from breaking at low temperatures.

Hydroelectric Separation

Water and circuit are separate to ensure safety.

Leakage Protection

Connect the ground wire to prevent current through the human body

Water Shortage Protection

The water pump protection will be turned on at water shortage.

Automatic Detection of Faults

Display fault code for easy judgment and maintenance.



Product Details






Customer feedback


Factory Profile





Global Customers


Testing and certification


FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and service supply.


Q2: What is your main product?

Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.


Q3: How to place an order?

Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you

Catalogs,quotations and other information you need.


Q4: Do you provide OEM/ODM customized manufacturing services?

Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to yourspecial needs.


Q5: Can I apply to become your heat pump distributor/distributor?

A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.


Q6: I need to buy in large quantities. Can you provide sample service?

Yes, we can provide sample service, and we have engineers to help you solve installation problems



Products specifications

Model

CjG20b

Voltage

220-240V 50/60Hz

380-400V 50/60H

Wattage

8kW

10kW

12kW

16kW

20kW

FOB pricee/USD

$270

$290

$310

$320

$325

Fuel type

Electric

Function

Bathing only

Heating Area/m²

40-60

80-100

100-120

140-160

180-200

CH flow and Return pipes

CH flow and return   pipes:25mm(G3/4’),Refill:20mm(G1/2’),Inlet and outlet: 25mm(G3/4’)

Power cable

3*6 mm²

3*10mm²

5*2.5 mm²

5*4.0 mm²

5*6.0 mm²

Temp. Range

25-75/77-167

Circulation Pump

Internal ciuculation pump

Water fill tank

Internal water fill tank

Protection

With frost   protection,Anti-shock,over-heating

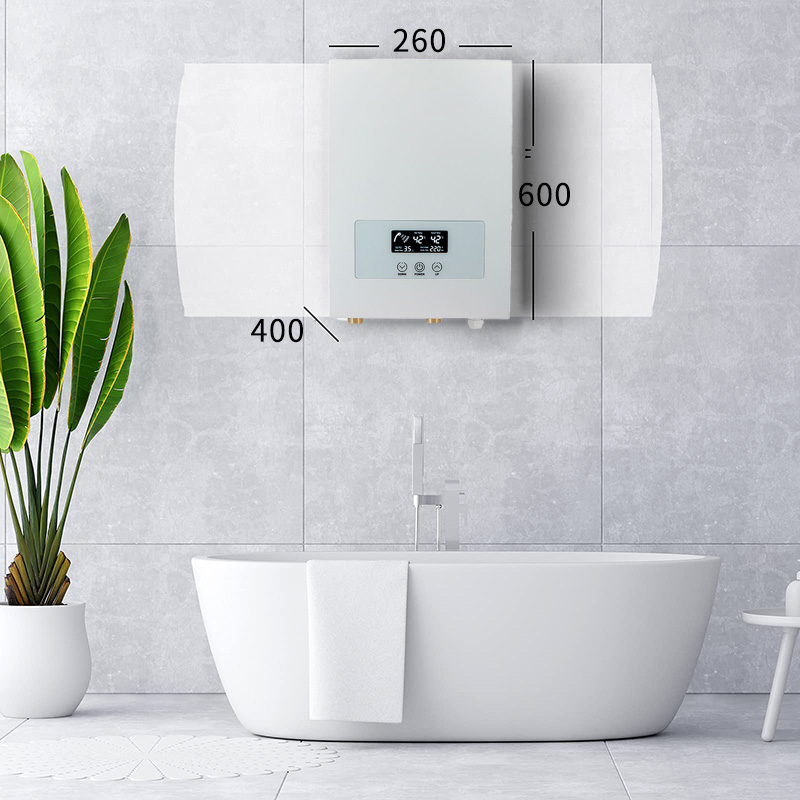

Product Size

600*260*400mm
